Hospital Elevator & Stretcher Lift
Hospital Elevator & Stretcher Lift
₹7,50,000
Starting Price
In a hospital, an elevator isn’t a convenience – it’s a critical lifeline. It moves patients on stretchers between emergency, ICU, OT, and recovery floors. It transports wheelchairs, medical equipment, and staff – often under urgent, time-sensitive conditions. A hospital elevator must be wider, deeper, and smoother than any passenger lift.
- Stretcher-Compatible Size
- 13-26 Passengers
- 1100mm+ Door Width
- Smooth & Jerk-Free
- Hospital Elevator & Stretcher Lift Specifications
- Capacity ------ 6 – 13 passengers (408 kg – 884 kg typical)
- Speed ------ 0.5 – 1.0 m/s
- Cladding ------ Glass panels | ACP sheets | Perforated metal | Combination
- Door Type------ Fermator centre-opening automatic
Built for Healthcare. Designed for Emergencies.

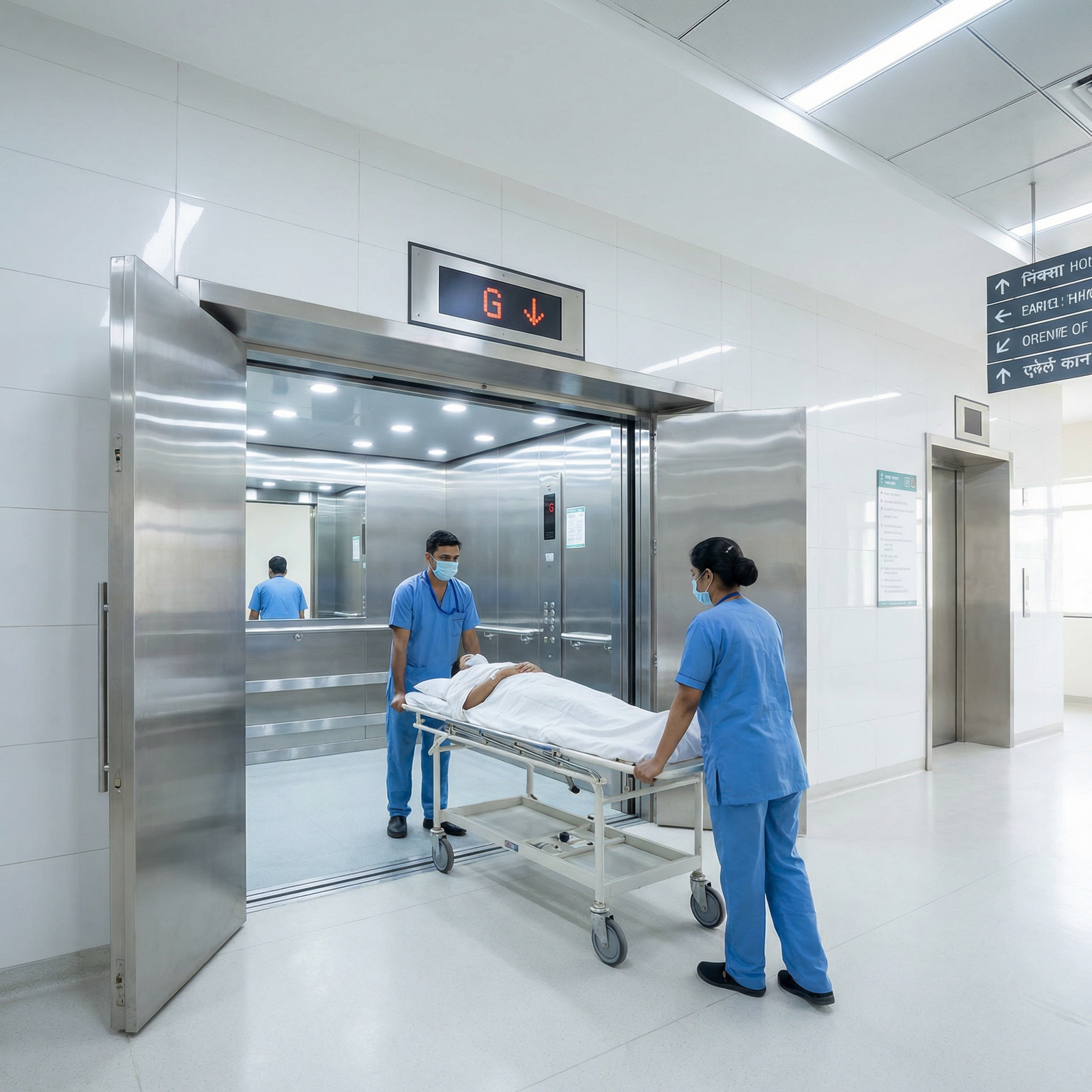

Vyonn hospital and stretcher lifts are purpose-built for healthcare environments. The car is deep enough to accommodate a full-size stretcher with attending medical staff on both sides. Doors are extra-wide (1100mm–1300mm) for wheelchair and stretcher access. The ride is engineered for zero-jerk operation – critical for patients in transit.
Available in MR and MRL configurations with capacities from 13 to 26 passengers (884 kg to 1768 kg). Cabin interiors use anti-bacterial stainless steel finishes, easy-to-clean surfaces, and bright LED lighting. All units comply with IS 17900 and healthcare facility standards.
Features That Make a Difference
How We Install a Structure Lift in Your Society
- Step 1: Feasibility Visit – Our structural engineer visits, assesses the building, and confirms if a structure lift is viable.
- Step 2: Design & Approvals – We prepare structural drawings, assist with NOC, and coordinate MCD/fire approvals.
- Step 3: Steel Structure Fabrication – The external shaft is fabricated off-site and erected at your location.
- Step 4: Elevator Installation – Guide rails, traction machine, controller, cabin, and doors installed inside the steel shaft.
- Step 5: Testing & Handover – Full safety testing, documentation, and handover to RWA. AMC plans offered from day one.
- Stretcher Lift Specifications
- Capacity ------ 6 – 13 passengers (408 kg – 884 kg typical)
- Speed ------ 0.5 – 1.0 m/s
- Max Floors ------ G+6 (typical DDA buildings are G+3 or G+4)
- Drive ------ MRL Gearless Traction (standard) | MR Geared Traction (optional)
- Shaft Type ------ External hot-rolled MS steel frame with powder coating
- Cladding ------ Glass panels | ACP sheets | Perforated metal | Combination
- Door Type------ Fermator centre-opening automatic
- Pit Depth ------ 600mm – 1000mm (civil pit at base of external shaft)
- Safety ------ Full IS 17900 compliance + weather sealing
- Approvals ------ NOC, MCD, Fire Dept. – assistance included in turnkey scope
Who Is a Stretcher Lifts For?
- Hospitals (multi-speciality, government, private)
- Nursing homes and assisted living facilities
- Clinics and diagnostic centres (multi-floor)
- Veterinary hospitals
- Medical colleges and research institutions
- Any facility requiring stretcher or wheelchair-size elevators
Why Delhi-NCR Choose Vyonn?
Healthcare-Specific Design
We don’t sell resized passenger lifts as hospital lifts. Every specification – door width, car depth, ride quality, cabin material – is designed specifically for stretcher and healthcare use.
Zero-Downtime Priority
Hospital elevators can’t afford breakdowns. Our AMC plans for healthcare facilities include priority 2-hour emergency response and quarterly preventive maintenance.
Compliance Ready
IS 17900, fire-service standards, and healthcare facility norms – fully compliant. Documentation provided for hospital licensing and accreditation audits.
Proven Healthcare Track Record
We’ve installed stretcher lifts in hospitals, nursing homes, and clinics across Delhi-NCR. References available on request.
Get Quote
Ready to Install? Contact Us Today!
- Phone: +91 83778 48110
- sales.vyonnlifts@gmail.com
- Address: B-381, Sector C-8, Trans Delhi Signature City, Ghaziabad 201103
Stretcher Lift MRL (13 passengers, G+3): Starting from ₹7,50,000
Free site survey. Transparent quotation within 48 hours. No obligation. Stretcher Lift MR (20 passengers, G+5): Starting from ₹10,00,000
Free site survey. Transparent quotation within 48 hours. No obligation. Large Hospital Lift (26 passengers, G+8+): Custom quotation
Free site survey. Transparent quotation within 48 hours. No obligation.Frequently Asked Questions
A stretcher lift should have a minimum car depth of 2100mm and width of 1100mm to safely accommodate a standard stretcher with one attendant. Vyonn’s standard stretcher lift car is 1600mm x 2500mm, allowing a stretcher with two attendants and monitoring equipment.
Yes. We assess the existing shaft space and structural capacity. MRL options can fit into tighter spaces. If the existing shaft is too small, we can recommend structural modifications or an external shaft solution.
Our hospital lifts use VVVF drives with precision levelling. The start, travel, and stop are designed for zero-jerk operation – critical for patient transport, IV drip stability, and monitoring equipment.
SS 304 stainless steel with anti-bacterial coating is standard. Optional: anti-microbial flooring, seamless PVC wall cladding, and copper-infused handrails for enhanced hygiene.
Yes. Our healthcare AMC plans include priority 2-hour emergency response, quarterly preventive visits (instead of monthly for commercial), and dedicated technician assignment for multi-lift facilities.
