Hydraulic Elevators
Hydraulic Elevators
₹4,50,000
Starting Price
Not every building has a pit. Not every homeowner wants to deal with elevator licenses. Not every site can accommodate a machine room on the terrace. Hydraulic elevators solve all three problems at once.
- No Pit Required
- No Machine Room
- No License Needed*
- Italian GMV Technology
- Hydraulic Elevator Specifications
- Capacity ------ 2 – 6 passengers (up to 408 kg)
- Speed ------ 0.15 – 0.3 m/s
- Pit Depth------ 0mm (pitless)
- Headroom ------ 3200mm minimum
The Elevator That Goes Anywhere – Even Where Others Can’t

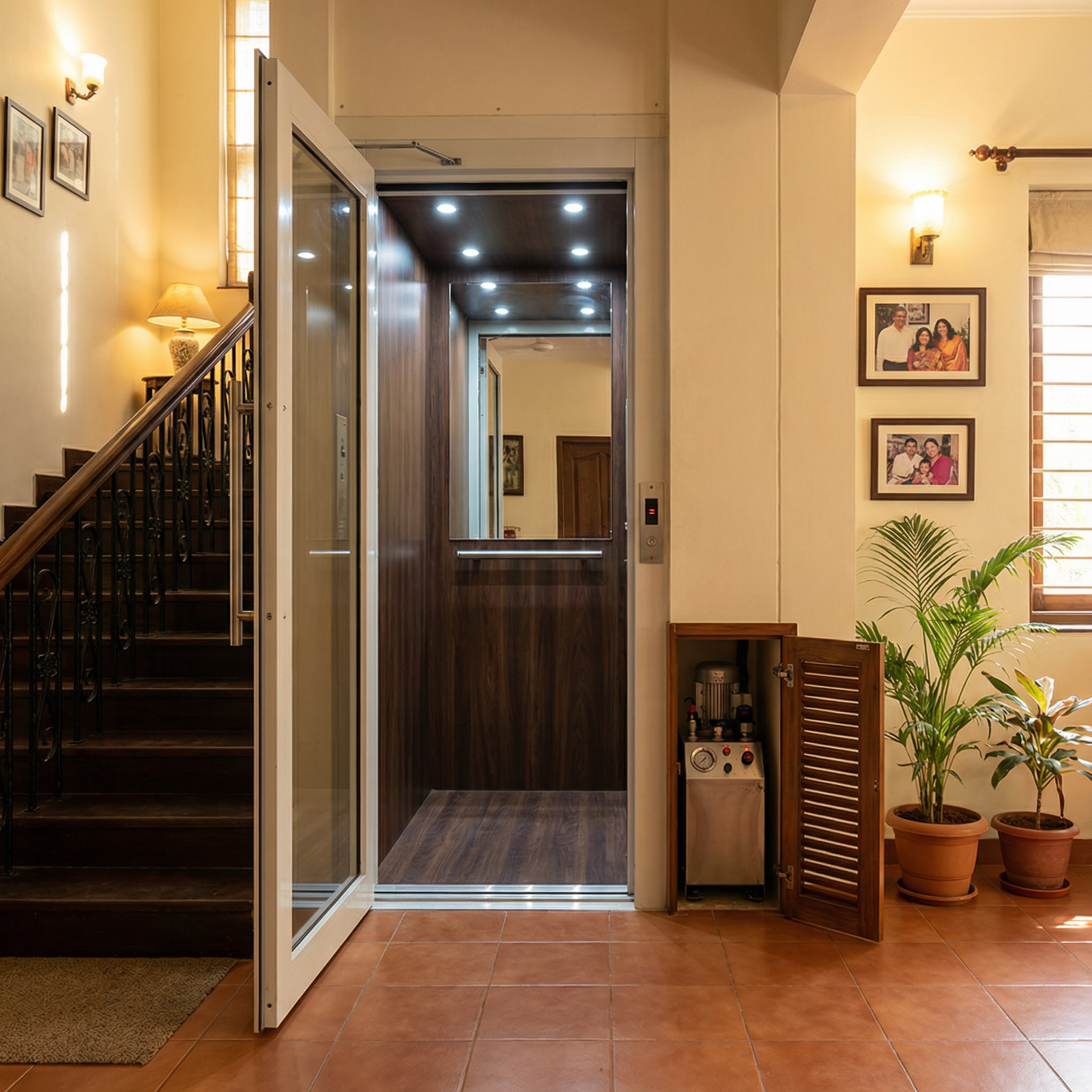

Powered by Italian GMV hydraulic units, these elevators use fluid pressure to raise and lower the cabin – no overhead traction machine, no ropes, no counterweight. The result is an incredibly smooth, quiet ride that installs in spaces where conventional traction elevators simply cannot fit.
Ideal for homes (G+2 to G+3), boutique showrooms, small commercial buildings, clinics, and heritage structures where structural modifications are restricted. Vyonn is one of the few Delhi-NCR companies offering genuine Italian hydraulic technology – not locally assembled imitations.
Features That Make a Difference
Simple Technology. Proven Performance.
A hydraulic elevator works on Pascal’s principle. An electric motor drives a pump that pushes hydraulic fluid into a cylinder. The fluid pressure pushes a piston upward, which lifts the car. To descend, a valve releases fluid back into the reservoir, and the car lowers under controlled gravity. There are no ropes, no counterweight, and no overhead traction machine.
This simplicity means fewer moving parts, less maintenance, and a longer lifespan for the core components. The trade-off is speed (typically 0.15–0.3 m/s) and travel height (up to ~12 metres or G+3), which is why hydraulic is ideal for low-rise residential and boutique commercial use.
- Hydraulic Elevator Specifications
- Capacity ------ 2 – 6 passengers (up to 408 kg)
- Speed ------ 0.15 – 0.3 m/s
- Drive Options ------ Hydraulic – GMV (Italy)
- Machine Room ------ Not required (compact power unit in adjacent cabinet)
- Door Type ------ Manual swing / Auto telescopic
- Max Travel ------ ~12 metres (G+3)
- Pit Depth------ 0mm (pitless)
- Headroom ------ 3200mm minimum
- Power Supply ------ 220V single-phase
- Safety ------ Emergency lowering, overpressure valve, manual release, door interlock
- License ------ Not required in most states (pitless classification)
Who Is a Hydraulic Elevator For?
- Existing homes without pit or machine room space
- Retrofit installations in older buildings
- Boutique showrooms and clinics (low-rise)
- Heritage buildings with structural modification restrictions
- Homes with high water table (pit excavation risky)
- Homeowners wanting hassle-free, license-free installation
Why Hydraulic Elevators Owners Across Delhi-NCR Choose Vyonn
Genuine Italian Technology
Complete In-House Installation
Site survey, shaft design, cabin customization, installation, and testing – all done by Vyonn’s own team. No outsourced sub-contractors.
Honest Guidance
If your building can accommodate a pit and you need more than 3 floors, we’ll honestly recommend traction instead. We don’t oversell hydraulic where it’s not the right fit.
30-Day Delivery
Get Quote
Ready to Install? Contact Us Today!
- Phone: +91 83778 48110
- sales.vyonnlifts@gmail.com
- Address: B-381, Sector C-8, Trans Delhi Signature City, Ghaziabad 201103
Hydraulic Home Elevator (2 passengers, G+2): Starting from ₹4,50,000
Free site survey. Transparent quotation within 48 hours. No obligation.
Hydraulic Home Elevator (4 passengers, G+3): Starting from ₹5,50,000
Free site survey. Transparent quotation within 48 hours. No obligation.
Hydraulic Goods/Commercial (custom): Custom quotation
Free site survey. Transparent quotation within 48 hours. No obligation.Frequently Asked Questions
Yes. Hydraulic elevators have a different safety mechanism – in case of power failure, the car descends gently under controlled gravity rather than stopping mid-shaft. They include door interlocks, overpressure valves, and manual release mechanisms.
Absolutely. That’s the primary advantage. No pit excavation, no machine room construction, and no license process. We can install in stairwell corners, side spaces, or even outside the building with a glass shaft.
Hydraulic oil levels and condition should be checked periodically. Overall, maintenance is simpler than traction systems because there are fewer moving parts. We offer AMC plans starting from ₹12,000/year.
Hydraulic technology is inherently slower (0.15–0.3 m/s vs 0.5–1.5 m/s for traction). For a G+2 or G+3 home, this translates to about 15–25 seconds per floor – perfectly comfortable for residential use.
Very quiet. The pump unit operates only during upward travel and produces minimal sound. Descent is gravity-assisted and virtually silent.
